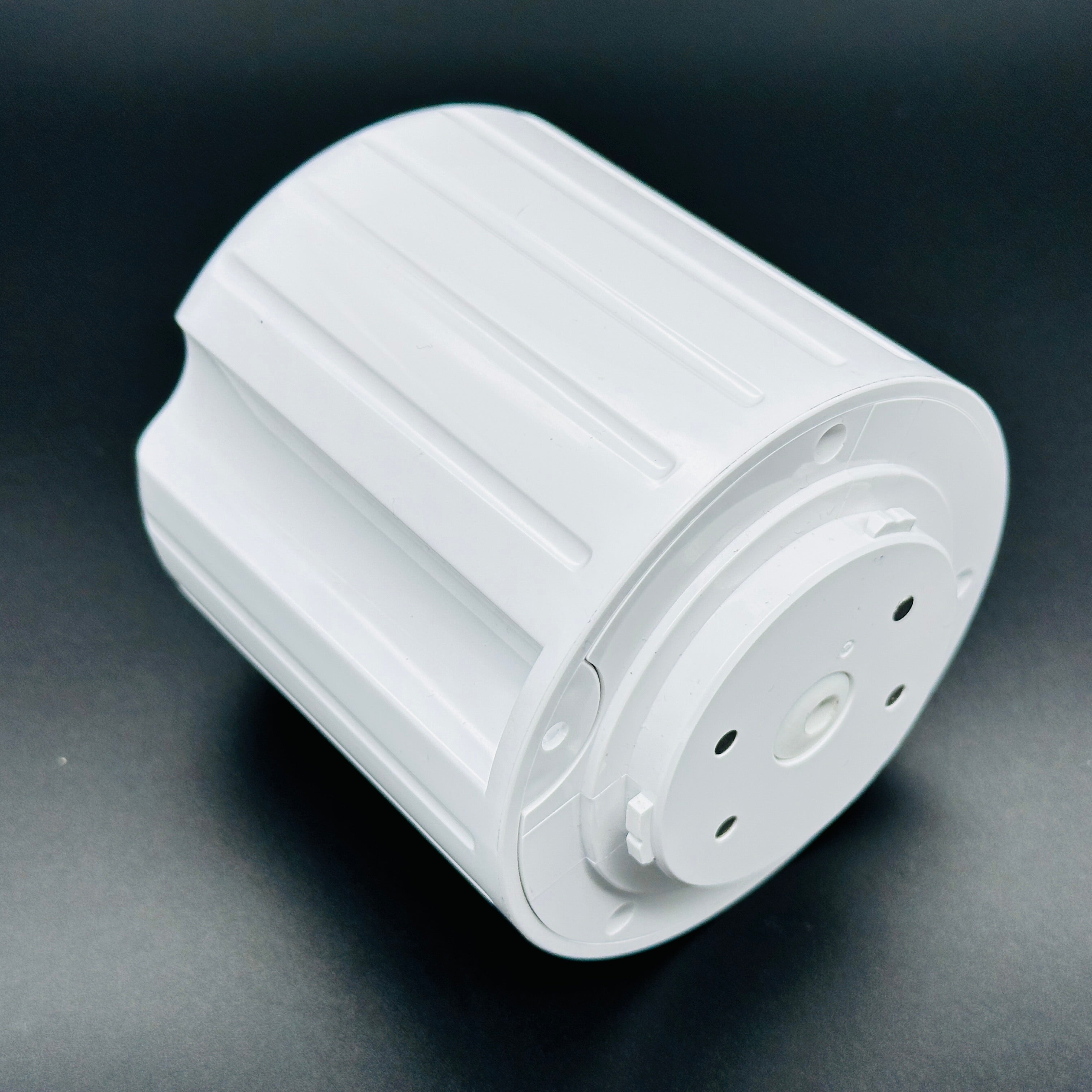

ODORUN Battery Pack B-2510 (Compatible with ANS-01RM)
ODORUN Battery Pack B-2510 (Compatible with ANS-01RM)
Share
• Fully Compatible & Reliable Power Supply
The ODORUN Battery Pack B-2510 is specifically designed for the ODORUN rechargeable toilet odor remover (ANS-01RM), delivering stable, reliable power and extended runtime for uninterrupted operation.
• Long Runtime with High-Capacity Lithium Battery
Equipped with a 21700 lithium battery pack in a 3S3P configuration, rated at 11.1V / 1.35Ah (149.85Wh).
Provides up to 360 minutes of continuous operation, equivalent to up to 240 cycles of 90-second use per full charge. Under typical usage conditions, one full charge can last approximately 3 weeks, depending on frequency of use.
• Flexible Charging Options for Easy Maintenance
Supports convenient recharging using a 12V / 5A power adapter.
The battery pack may be charged on-site without removal, or easily unscrewed and charged separately, then reinstalled once fully charged—offering maximum flexibility for daily operation and facility maintenance.
• Clear LED Charging Status Indicator
An integrated LED indicator provides clear, at-a-glance charging status:
• Red flashing light: Low battery
• Green flashing light: Charging in progress
• Solid green light: Fully charged
A full recharge from a low battery state typically takes approximately 8 hours.
• Quick Removal & Secure Installation
After removing the tamper-resistant Torx screw, the battery pack can be unscrewed counterclockwise from the suction assembly. Once fully charged, reinstall it by screwing clockwise back onto the suction assembly and secure it again with the Torx screw.
• Optimized for Multi-Toilet Installations
For properties with multiple ANS-01RM units, it is recommended to purchase additional spare battery packs in proportion to the number of installed units. This allows fully charged battery packs to be swapped in as needed, ensuring continuous, uninterrupted operation without downtime.
• Compact & Lightweight Design
Weighing only 1.76 lb (0.8 kg), the battery pack is engineered for easy handling, quick installation, and efficient replacement.
Product information
Features & Specs
1. Motor: High-Speed Brushless Motor, 48000+ RPM, 25+W
2.Extract air volumn: 2.7+Gallon/s
3. Noise Lever: less then 70 db
4. Package Size: 18.6"x9.5"x7.7"
5. Color: White
6. Material: PP, ABS, PA, PVC, POM, Stainless Steel
What’s in the Box
1.Air Suction Unit ×1
2.Adjustable Mounting Brackets x2
3.Main Unit ×1
4.Ventilation Flange ×1
5.High-Foot Ventilation Bolt x 1
6.Medium-Foot Ventilation Bolt x 1
7.Standard-Foot Ventilation Bolt x 1
8.Low-Foot Ventilation Bolt x 1
9.Converter x1
10.Converter Nut ×1
11.Cap Cover x1
12.Conversion Adapter x1
13.Mounting Bolt x1
14.Plastic Washer x1
15.Metal Washer x1
16.Mounting Nut ×1
17.Stainless Steel Corrugated Pipe ×1
18.Wax Ring ×1
19.Electric Adapter ×1
(12V3A with 2 meter cable - Plug-in series )
(12V5A with 1 meter cable - Rechargable series)
20.Battery Pack x1 (Rechargable series)
Care & Maintenance
Surface Care
To maintain the refined appearance of your ODORUN unit, clean exterior surfaces using mild soap, warm water, and a soft cloth. For more persistent marks, a powdered detergent may be used with a damp sponge or nylon scouring pad.
Avoid harsh chemicals, abrasive cleaners, or rough materials, as these may scratch or dull the surface finish. Certain bathroom chemicals and cosmetic products may also affect the finish. We recommend testing any cleaning solution on an inconspicuous area before applying it to visible surfaces.
Suction Nozzle Maintenance
The suction nozzle plays a critical role in overall system performance. Depending on usage frequency and environmental conditions, it should be inspected and cleaned regularly—approximately once per month.
If necessary, the suction nozzle may be replaced with a new one to ensure consistent airflow, optimal efficiency, and improved indoor air quality.
Annual Deep Cleaning
For long-term performance, an annual deep cleaning is recommended. Carefully remove the main unit, suction unit, and ventilation hose, and clean each component thoroughly before reinstallation. Regular deep maintenance helps preserve efficiency and extend the life of your ODORUN system.
Warranty
Limited One-Year Warranty
ODORUN products are manufactured to the highest standards of quality and craftsmanship. Each product is backed by a limited one-year warranty, effective from the date of original purchase.
ODORUN warrants to the original consumer purchaser that its products will be free from defects in materials and workmanship under normal use and service. Should a defect occur during the warranty period, ODORUN will, at its discretion, repair or replace the product or defective part at no charge.
To obtain warranty service, return the product or affected part to an authorized retail location, or contact ODORUN Customer Service at info@odorun.com for assistance with replacement procedures.
Proof of purchase, such as the original sales receipt from the original consumer purchaser, is required for all warranty claims.
Exclusions and Limitations
This warranty does not cover:
- Damage resulting from misuse, abuse, improper installation, or unauthorized modification
- Normal wear and tear
- Incidental or consequential damages
This limited warranty gives you specific legal rights, and you may also have other rights that vary by state or jurisdiction.
Customer Support
For warranty service or additional assistance, please contact ODORUN Customer Service at info@odorun.com or visit www.odorun.com
How ODORUN Is Truly Different
-
Source-Level Extraction
Odors are captured instantly at the bowl before they escape.
-
No Drilling
No pipes through floors, walls, or ceilings. No damage to existing spaces.
-
No Filters or Consumables
No cartridges, no fragrances, no declining performance over time.
