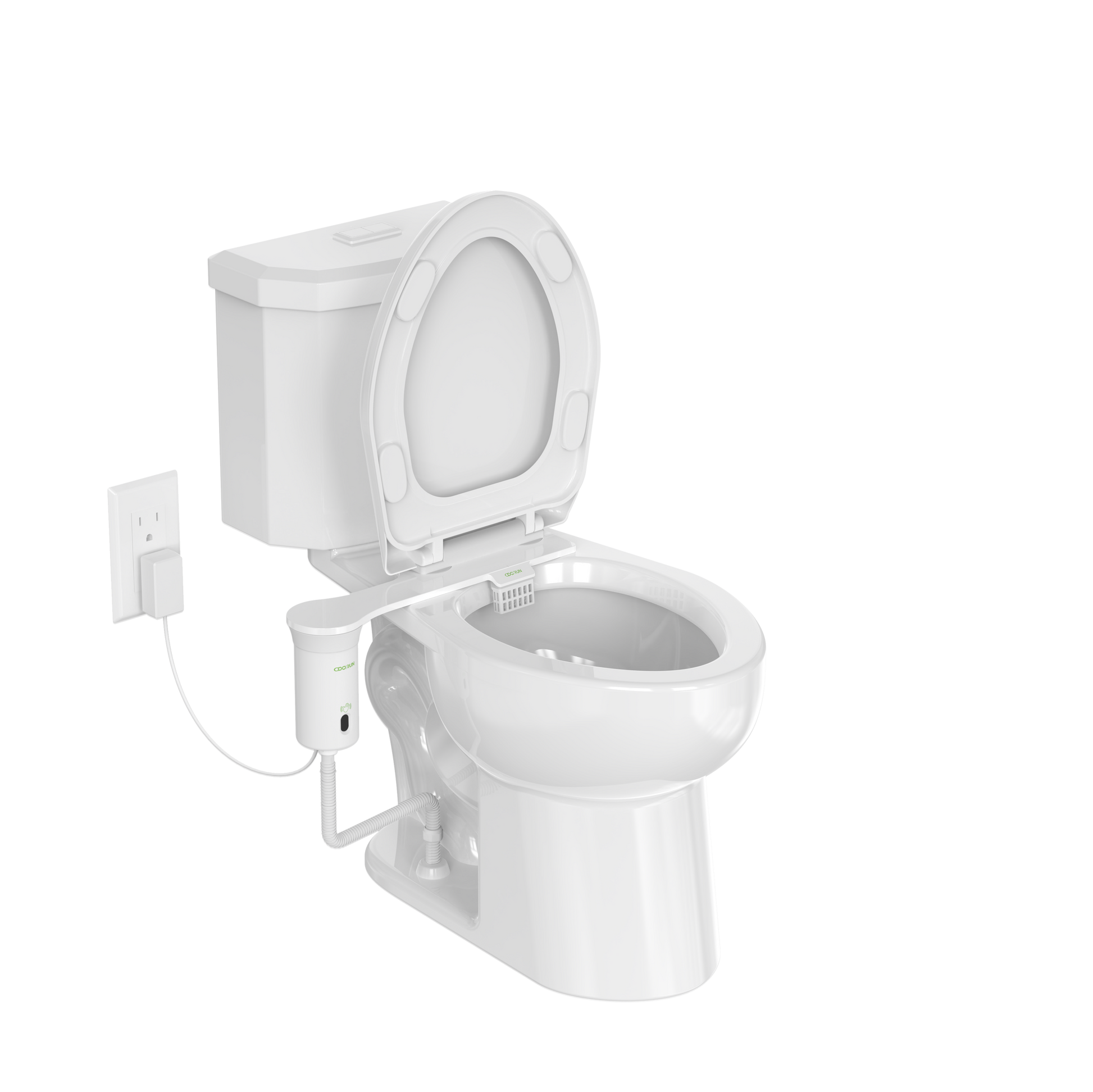

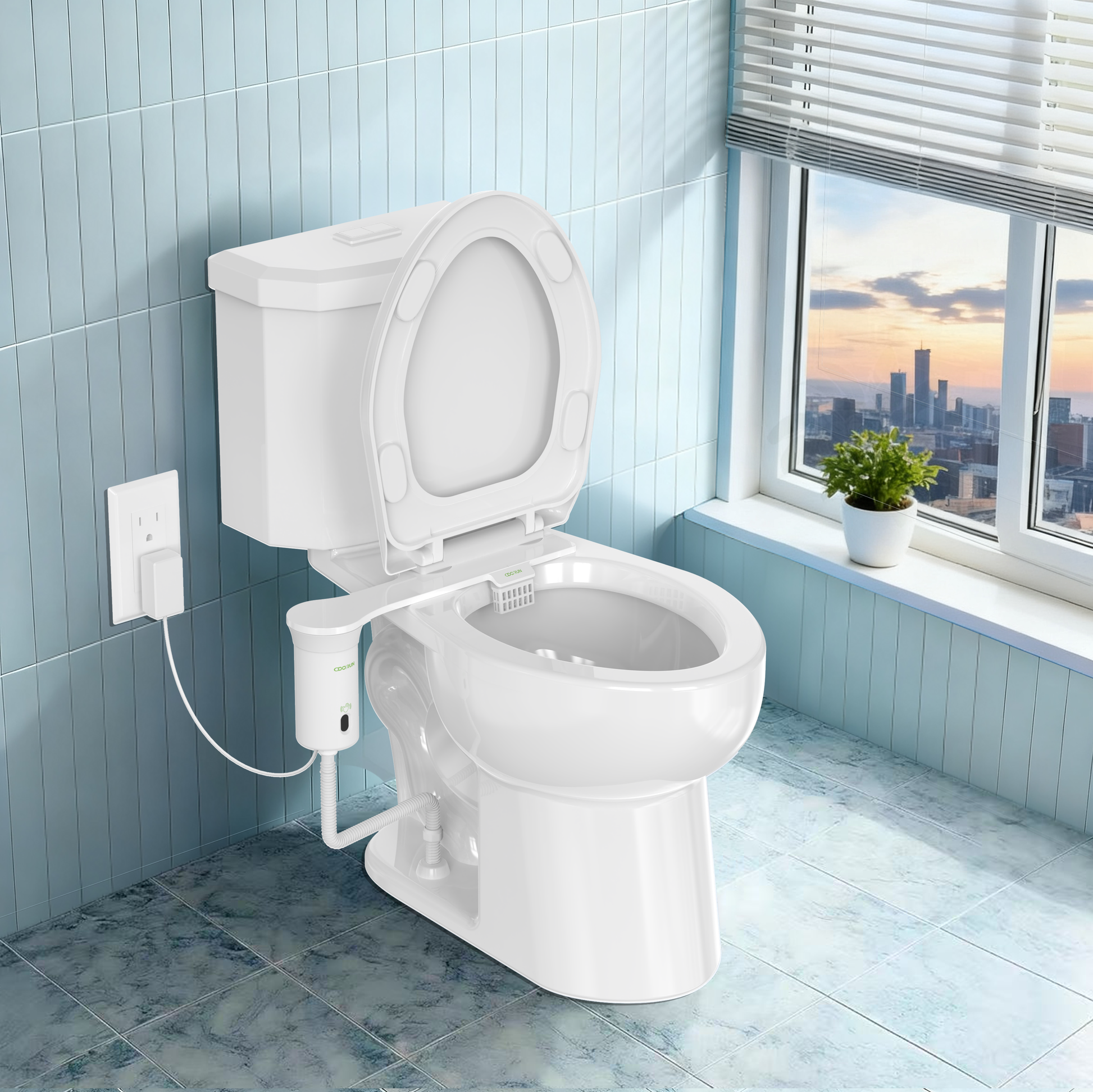

Toilet Odor Remover, Model ANS-01PM (Plug-in Powered, Manual Touchless Control)

1. Motor: High-Speed Brushless Motor, 48000+ RPM, 25+W

2.Extract air volumn: 2.7+Gallon/s

3. Noise Lever: less then 70 db

4. Package Size: 18.6"x9.5"x7.7"

5. Color: White

6. Material: PP, ABS, PA, PVC, POM, Stainless Steel

1.Air Suction Unit ×1
2.Adjustable Mounting Brackets x2
3.Main Unit ×1
4.Ventilation Flange ×1
5.High-Foot Ventilation Bolt x 1
6.Medium-Foot Ventilation Bolt x 1
7.Standard-Foot Ventilation Bolt x 1
8.Low-Foot Ventilation Bolt x 1
9.Converter x1
10.Converter Nut ×1
11.Cap Cover x1
12.Conversion Adapter x1
13.Mounting Bolt x1
14.Plastic Washer x1
15.Metal Washer x1
16.Mounting Nut ×1
17.Stainless Steel Corrugated Pipe ×1
18.Wax Ring ×1
19.Electric Adapter ×1
(12V3A with 2 meter cable - Plug-in series )
(12V5A with 1 meter cable - Rechargable series)
20.Battery Pack x1 (Rechargable series)

Surface Care

To maintain the refined appearance of your ODORUN unit, clean exterior surfaces using mild soap, warm water, and a soft cloth. For more persistent marks, a powdered detergent may be used with a damp sponge or nylon scouring pad.

Avoid harsh chemicals, abrasive cleaners, or rough materials, as these may scratch or dull the surface finish. Certain bathroom chemicals and cosmetic products may also affect the finish. We recommend testing any cleaning solution on an inconspicuous area before applying it to visible surfaces.

Suction Nozzle Maintenance

The suction nozzle plays a critical role in overall system performance. Depending on usage frequency and environmental conditions, it should be inspected and cleaned regularly—approximately once per month.

If necessary, the suction nozzle may be replaced with a new one to ensure consistent airflow, optimal efficiency, and improved indoor air quality.

Annual Deep Cleaning

For long-term performance, an annual deep cleaning is recommended. Carefully remove the main unit, suction unit, and ventilation hose, and clean each component thoroughly before reinstallation. Regular deep maintenance helps preserve efficiency and extend the life of your ODORUN system.

Limited One-Year Warranty

ODORUN products are manufactured to the highest standards of quality and craftsmanship. Each product is backed by a limited one-year warranty, effective from the date of original purchase.

ODORUN warrants to the original consumer purchaser that its products will be free from defects in materials and workmanship under normal use and service. Should a defect occur during the warranty period, ODORUN will, at its discretion, repair or replace the product or defective part at no charge.

To obtain warranty service, return the product or affected part to an authorized retail location, or contact ODORUN Customer Service at info@odorun.com for assistance with replacement procedures.

Proof of purchase, such as the original sales receipt from the original consumer purchaser, is required for all warranty claims.

Exclusions and Limitations

This warranty does not cover:

• Damage resulting from misuse, abuse, improper installation, or unauthorized modification

• Normal wear and tear

• Incidental or consequential damages


This limited warranty gives you specific legal rights, and you may also have other rights that vary by state or jurisdiction.

Customer Support

For warranty service or additional assistance, please contact ODORUN Customer Service at info@odorun.com or visit www.odorun.com
